Expansion Shield X200 for Raspberry Pi B+/2B/3B [DFR0357]

Expansion Shield X200 for Raspberry Pi B+/2B/3B [DFR0357]

販売価格: 6,480円(税別)

(税込: 7,128円)

数量:
お問い合わせ
お気に入り登録

商品詳細

INTRODUCTION

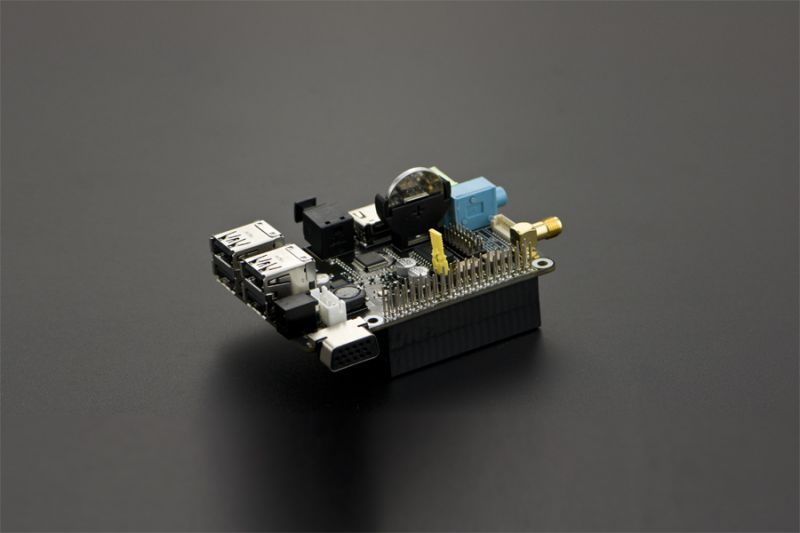

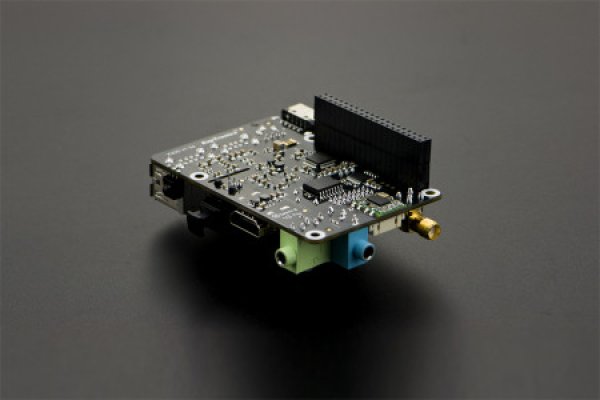

Ｅｘｐａｎｓｉｏｎ Ｓｈｉｅｌｄ Ｘ２００ は、Raspberry Pi B+, Raspberry Pi 2 Model B、そして最新の Raspberry Pi 3 Model B に適用可能な
最も対費用効果の高いシールドです。　ＲＴＣ リアルタイムクロック、オーディオ入出力、ＶＧＡ出力、ＵＳＢハブ、ＷｉＦｉ、８種類の
ＧＰＩＯなどの役立つ機能を数多く集積できます。　このシールドを用いることで、Ｒａｓｐｂｅｒｒｙ Ｐｉ プロジェクトをより容易に、
時間とコストを削減し実現できます。







SPECIFICATION





  • Input Voltage: 6V to 21Vdc converted to 5V, 3A via step-down DC/DC converter to power the Raspberry Pi
  • VGA output: HDMI to VGA converter supporting up to UXGA (1600×1200) and 1080p with 10-bit DAC
  • Audio: 3.5mm MIC in jack
  •        3.5mm stereo audio jack
  •        SPDIF output
  •        Audio IO connector (Microphone input and stereo audio amplifier 3.3Wx2)
  • Wireless: WiFi (IEEE 802.11b/g/n) with external antenna
  •           IR sensor (38KHz)
  • USB Storage: Self-powered USB hub with 3 ports

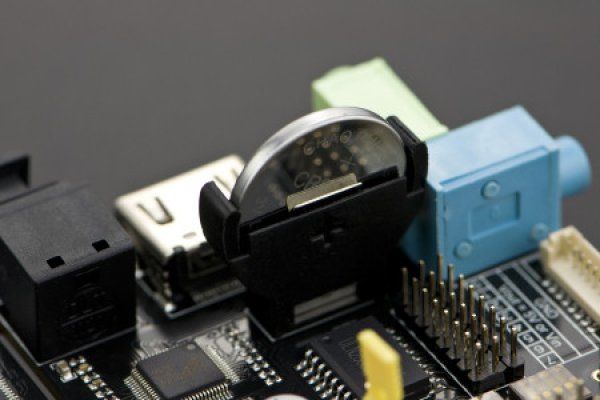

  • Real-time clock (RTC): Based on DS3231SN with included CR2032 battery
  • GPIO Control: 8-channel Darlington driver chip  (ULN2803) allowing to control electronic circuits which require more current
  • Misc: Power output socket
  •       Camera flex slot so camera can still be used with the expansion  board attached
  •       DIP switch to remove connection from RPi’s pin header
  •       Directly connected on top of the Raspberry Pi using the board GPIO header pins
  •       No wiring nor soldering is required
  •       Duplicated the 40-pin header of the R-Pi in order to support existing expansion boards
  •       Suitable for Raspberry Pi Model B+ and Raspberry Pi 2 Model B NEW!
  • Dimensions: 85 x 56mm(3.35 x 2.20") (Same size as Raspberry Pi)

Note: When you power Raspberry Pi with the shield power resource, please don't power it again via the Micro-USB port, it will damage the board!





ダウンロード　：　ドキュメント＆ドライバー

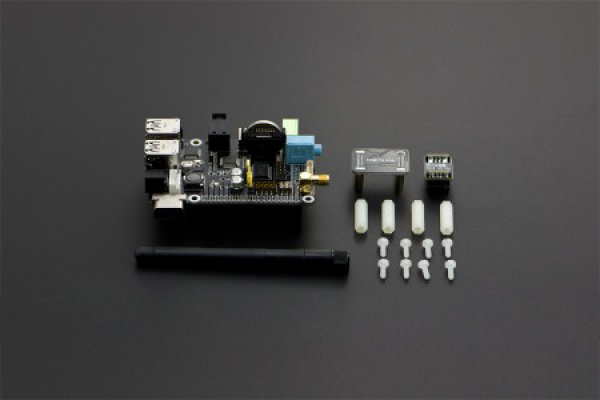

同梱物



  • X200 Raspberry Pi expansion board x1
  • HDMI adapter x1

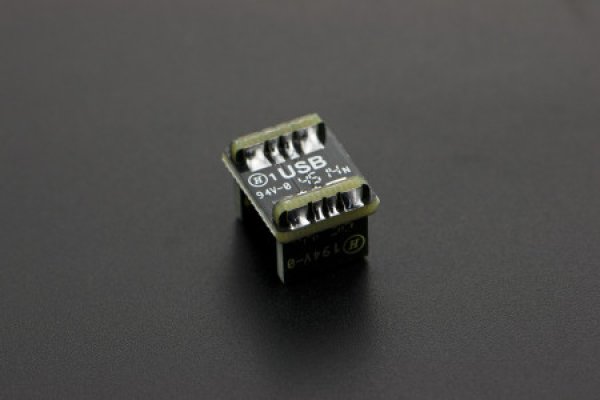

  • USB adapter x1
  • 2.4GHz WIFI antenna x1
  • nylon spacers (M3 x 20mm) x4
  • nylon screws  (M3 x 6mm) x8
